My favorite antenna for SOTA is a home brew 40/20 link Dipole with Extensions for 80 metres. I carry a 7 metre Squid Pole to the summit as well for support, and set it up with the end strings right to the ground to get the best inverted V config with a good degree angle for the dipole. Loops on the end of the strings are used to tie off to rocks mostly, saves carrying tent pegs on summits where the ground is usually too hard to use pegs any how.

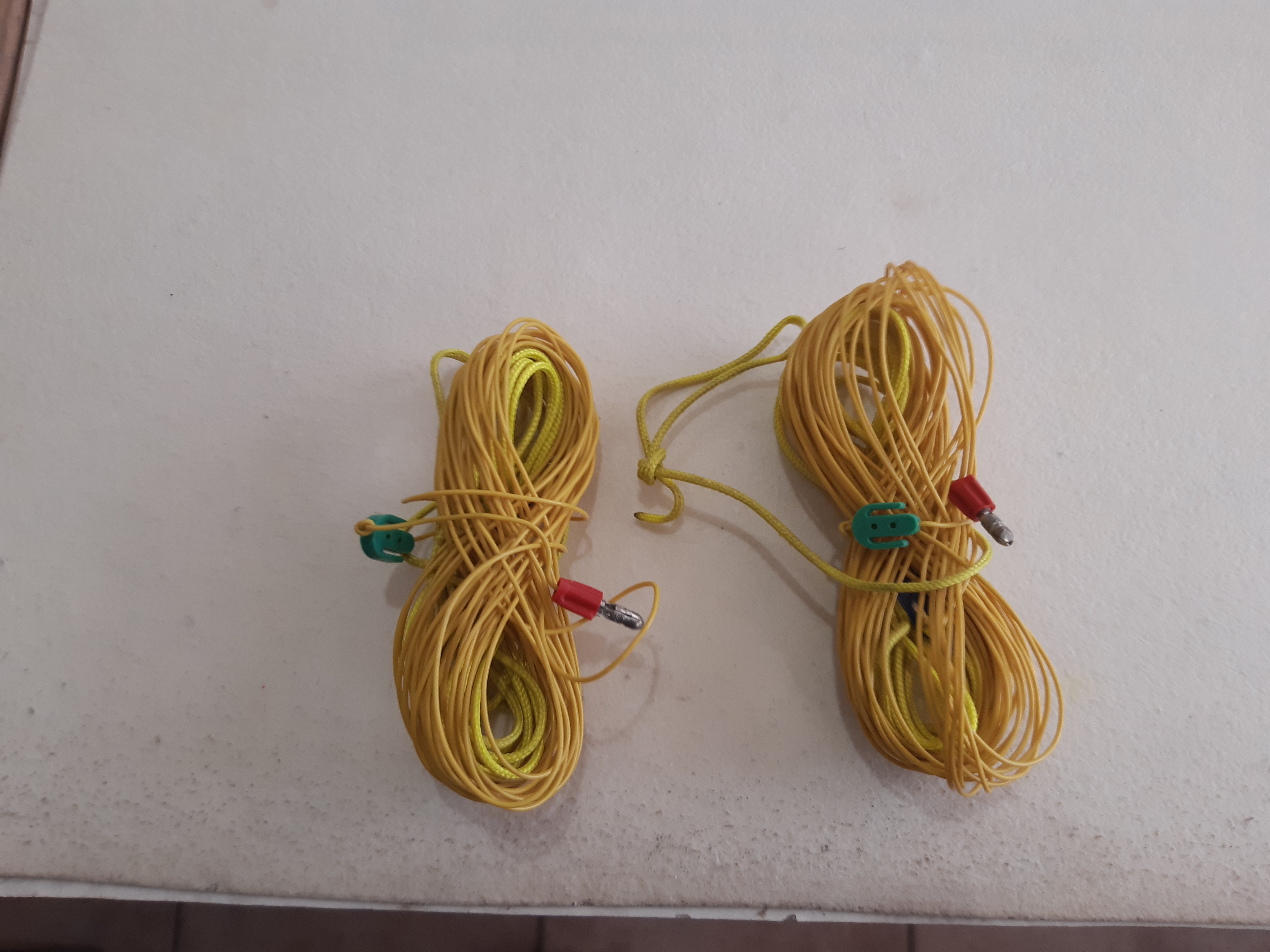

This is the rolled up Dipole and 80m Extensions

10m of RG 174 feed line wound through a toroide type 43 to limit common mode on the coax. I made the winding first then fitted the BNC line socket after the Choke was wound. 6 turns one way cross over 6 turns back the other way. The Loop on the string ends are used to make a slip knot type loop around a rock to hold the ends of the dipole in place. Plus it comes in handy for when you want to wind up the antenna.

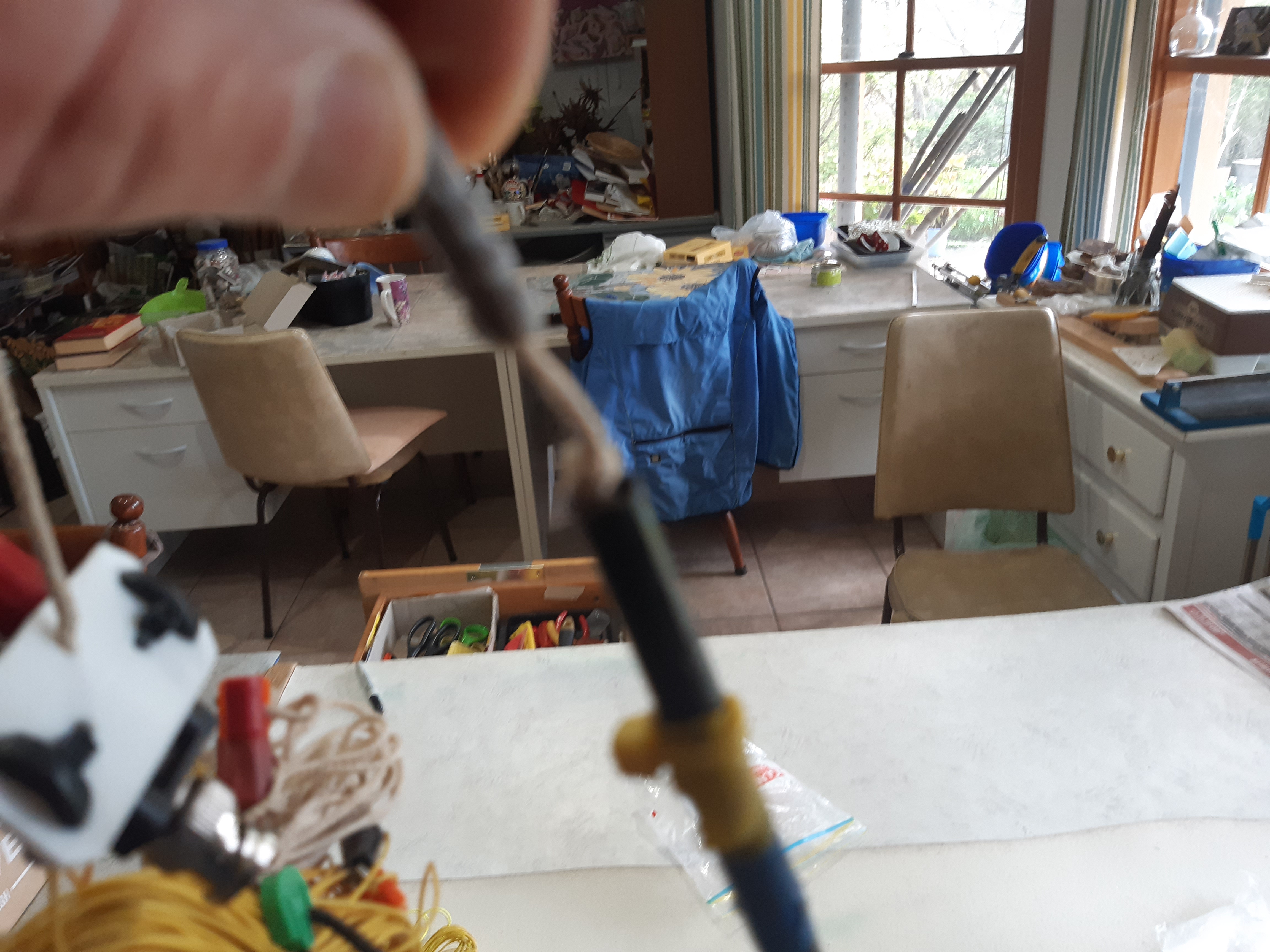

To fit the antenna to my Squid Pole I came up with a grey plastic wall plug that fits nicely in the end of my pole, it has never failed in all the time I have used it. Drill out the wall plug, poke the string through and tie a knot. When it fits in the top the string is slightly compressed and it holds in place nicely.

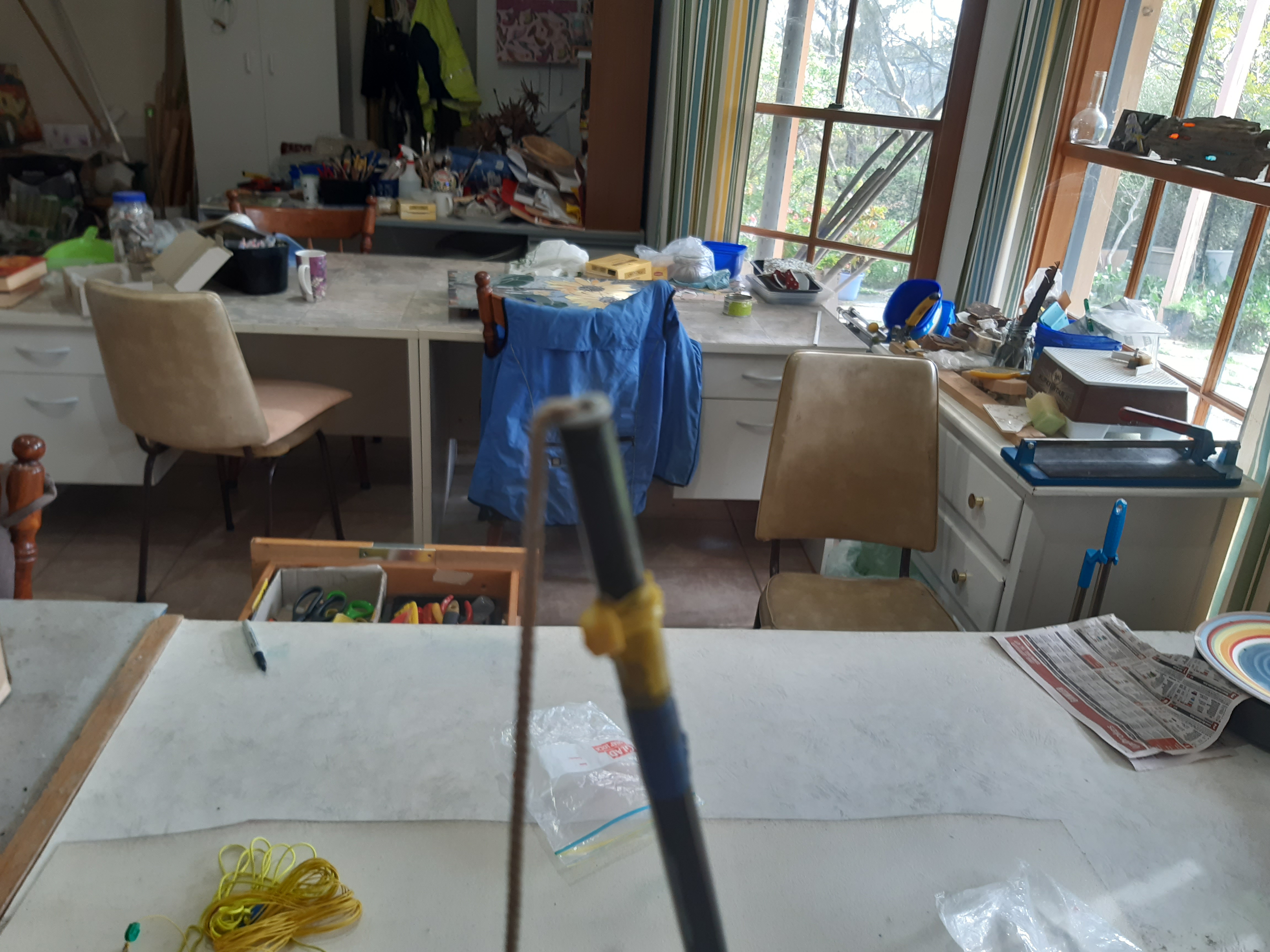

The reason for the yellow zip tie around the top section serves a good purpose. When the squid pole is fully collapsed the smallest section would always fall down inside the other sections. The zip tie leaves some of the smallest section sitting inside but above all the other sections so I can get a hand on it to fit up the antenna. Now if you bungee up your squid pole to a post or stump with out first pulling out the top section you have to undo every thing to get it out wasting time. With the zip tie on top its just sitting nicely in the top of the pole waiting for you.

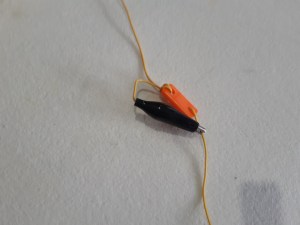

Time to explore my link methods and reasons. On most summits I visit there are lots of rocks and short prickly bush or grasses to tangle or break things if you are impatient. The antenna is most vulnerable when putting it up, when I made my antenna I only used one Alligator Clip per link. On the Highest frequency end I cut an inch off the outer case and tinned the wire with solder then tightly wrapped it around the outer case on the yellow wire. This give a good connection for the clip to grip on when closing the link and one less thing to hook on stuff causing a fail if I had used two clips per link.

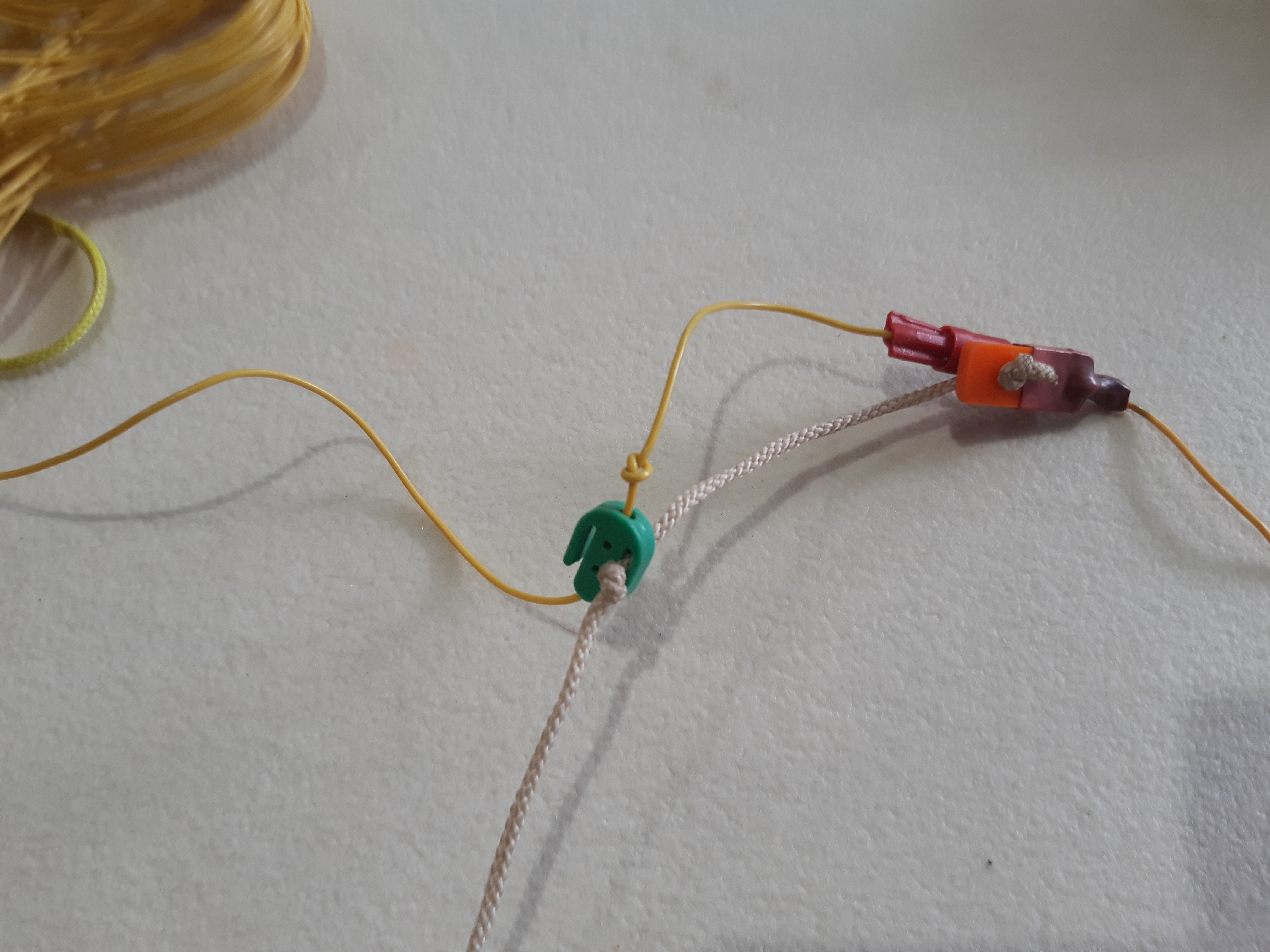

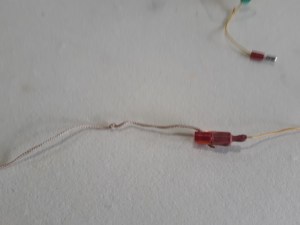

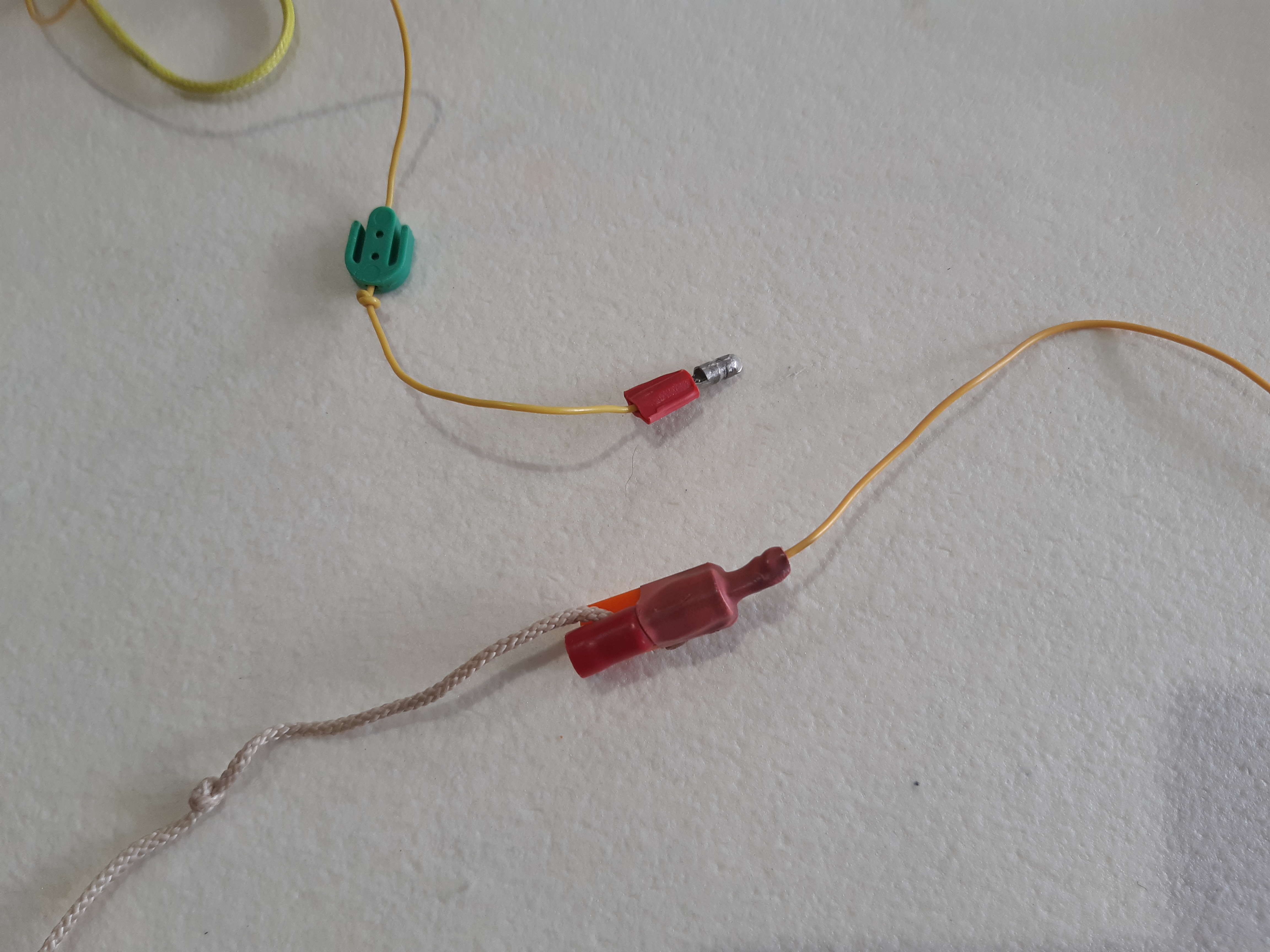

This is the 80m extension hook up point on the very end of the 40m section of the dipole. I chose Bullet connectors for this job and a plastic fitting to give extra support to the extension wire. The small knot tied in the 40m end string is there as strain relief for the extension wire when the antenna is up. Plug the bullet connector into place then place this green fitting behind the knot on the string then run out you extension wire.

With an 80m antenna on a summit it becomes a big span of wire so in my case I set up the 40/20 inverted V like normal then add the extensions to the already supported dipole leaving all support strings hooked up to rocks or what ever is my end support. When you finish on 80m you can just unplug the extension and leave it in place until you roll up the antenna at the end of the activation. I usually roll up my extensions first then the rest of the antenna last leaving less chance to get thing caught up on the floor of the summit.

Activation done lots of chasers and S2S its time to roll up the antenna and head to the next summit.

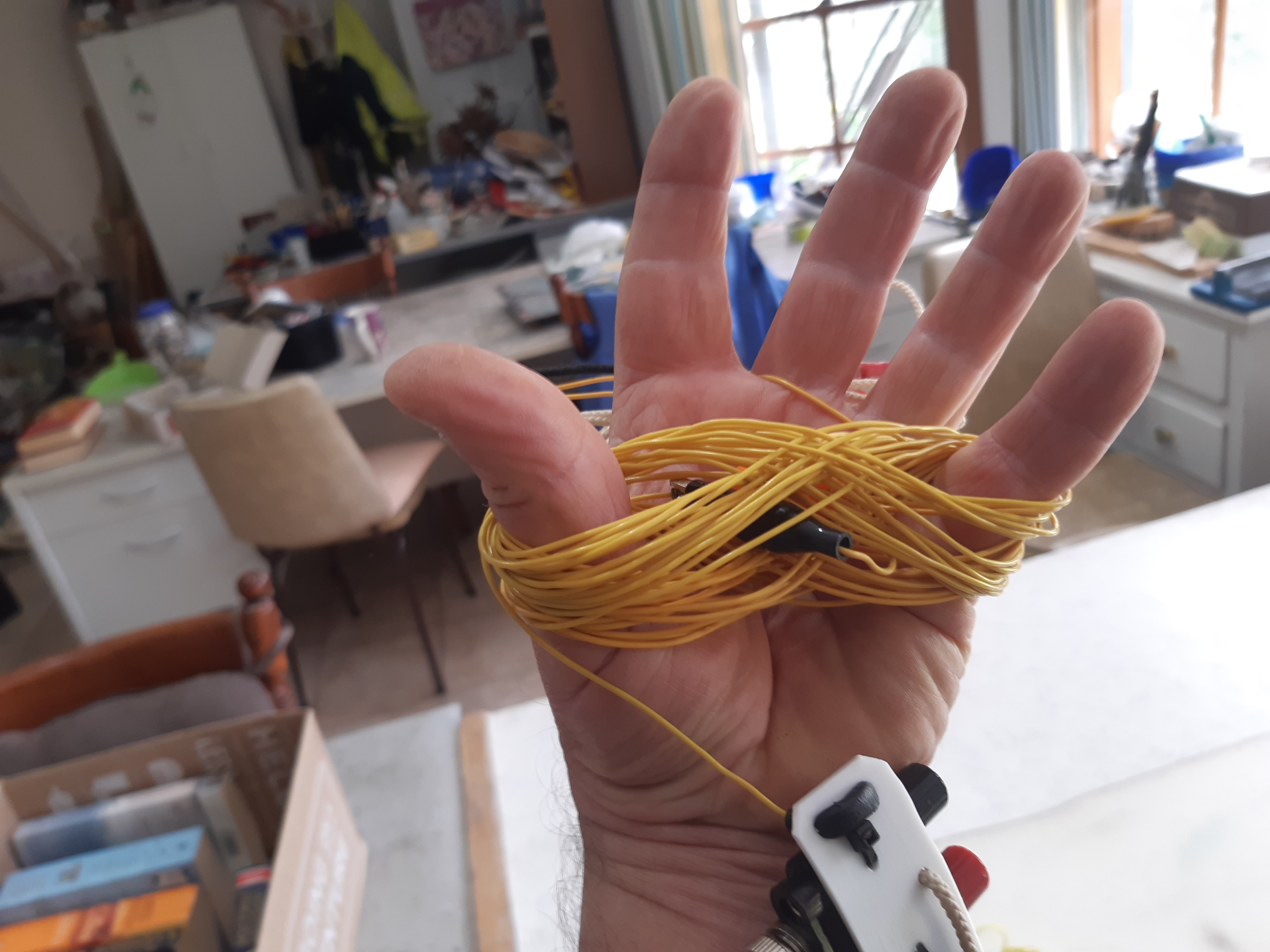

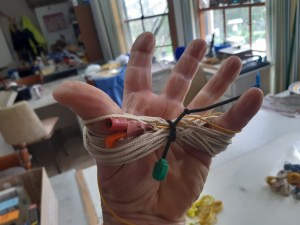

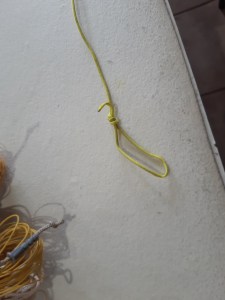

Start with extensions first with the loop on the end of the string over your Pinky finger and roll in figure of 8 pattern around Finger and Thumb.

With the 40/20 dipole start with the support string first and roll until a couple turns of the dipole end is on your hand as well, this is where I tie a simple knot around the first part.

Take the wound up string section off you fingers and place it between your fingers at the back of your hand then continue rolling the rest of the antenna on in the same figure of 8 pattern.

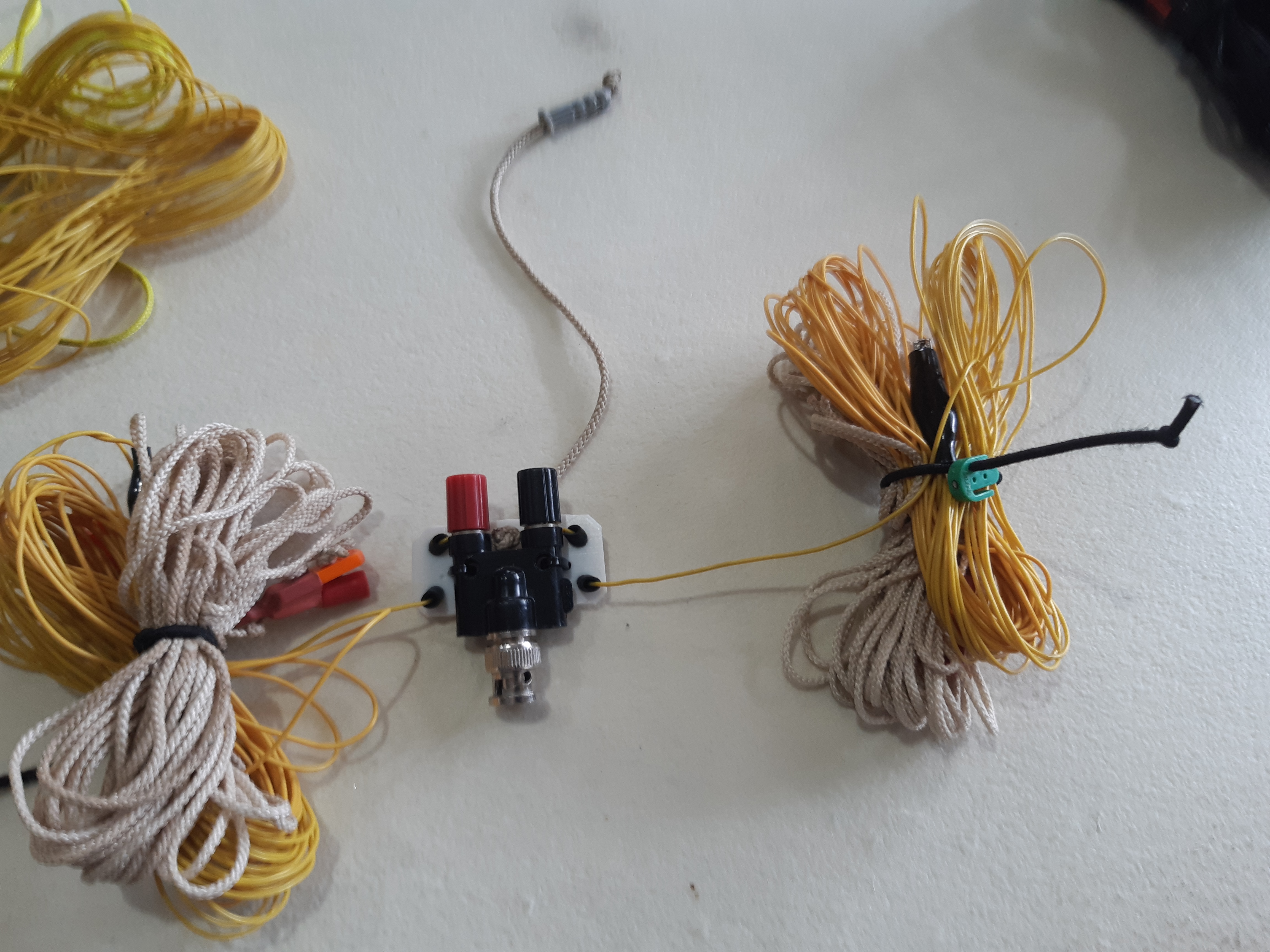

  When both bundles are rolled up then I place the tie through the green fitting. Now my main reason for rolling it this way is again to help with erecting the antenna on the next summit, it is tangle free and less likely to snag on the way up and you can visually monitor for snags.

My coax is rolled up by the same method I roll up all coax that is on the ground at the radio end and tie it off then when the Squid pole is lowered I roll up the rest and tie it off with a different tie. It helps to keep it safe from big feet stepping on it when putting up the antenna. Yes of course I am speaking from learned experiences when it comes to SOTA antennas on a summit I have the tee shirt remember.

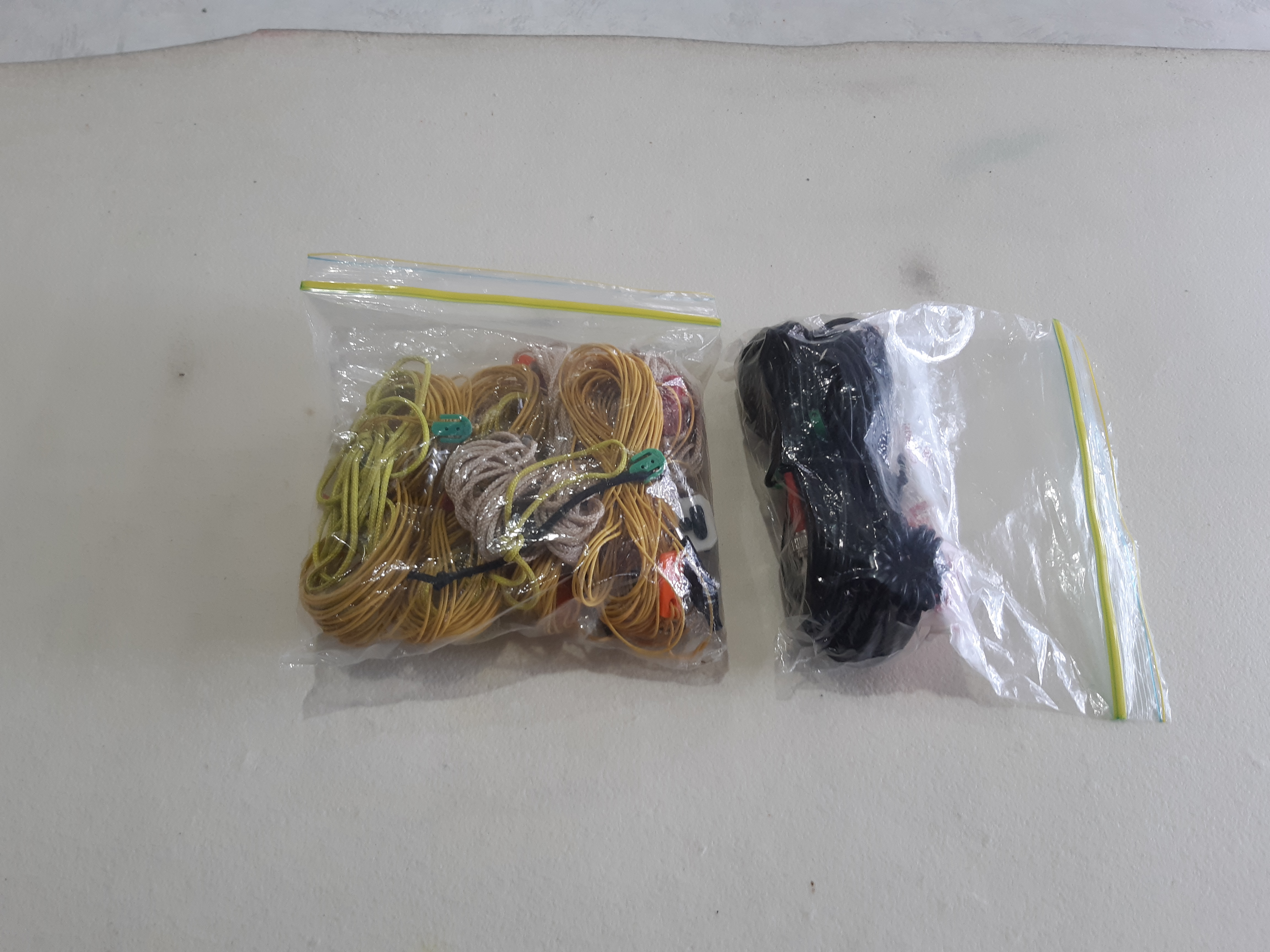

  Nice and Compact for my SOTA bag.

Hope this helps someone in their Quest for Mountain Goat.

Thanks to George KX0R for showing me this method of rolling up an antenna.

Regards

Ian vk5cz

Hikes to three 8 point and one 6 point summits on my list are all 12 plus km round trips with Mt Bryan the exception its only about a 2 km hike up with 100 m gain for the first kilometre then 230 m gain for the last km its an ankle burner for sure. On checking on Google Earth I was surprised to see the car park is at 600 m ASL.

I digress.

For 300 summits I hiked solo to Mt Remarkable as a special visit for that occasion, Ian VK5IS joined me on my next hike to Mt Brown. We made good progress leaving the Ute at 9 am giving a window of about 2 hours to make the Alert time on top. Fantastic weather on this day hardly any wind we headed up the creek for 3 km before the track ramped up the angle and the pain.

Mount Brown VK5/NE-014.

This spot is where the puff is about to really start so we had a drink and took off some clothing.

   Great Views out to the north you can see 4 other summits to the north from here, still about 1.5 km to the top, 1 hour done.

The 2 Ian’s hard at work taking turns giving out points VK5IS on 80/40m ssb and VK5CZ on 80m ssb/cw then 40m cw. Doesn’t seem to be the same amount of chasers on 40m ssb anymore, Ian only had one qso i think from memory.

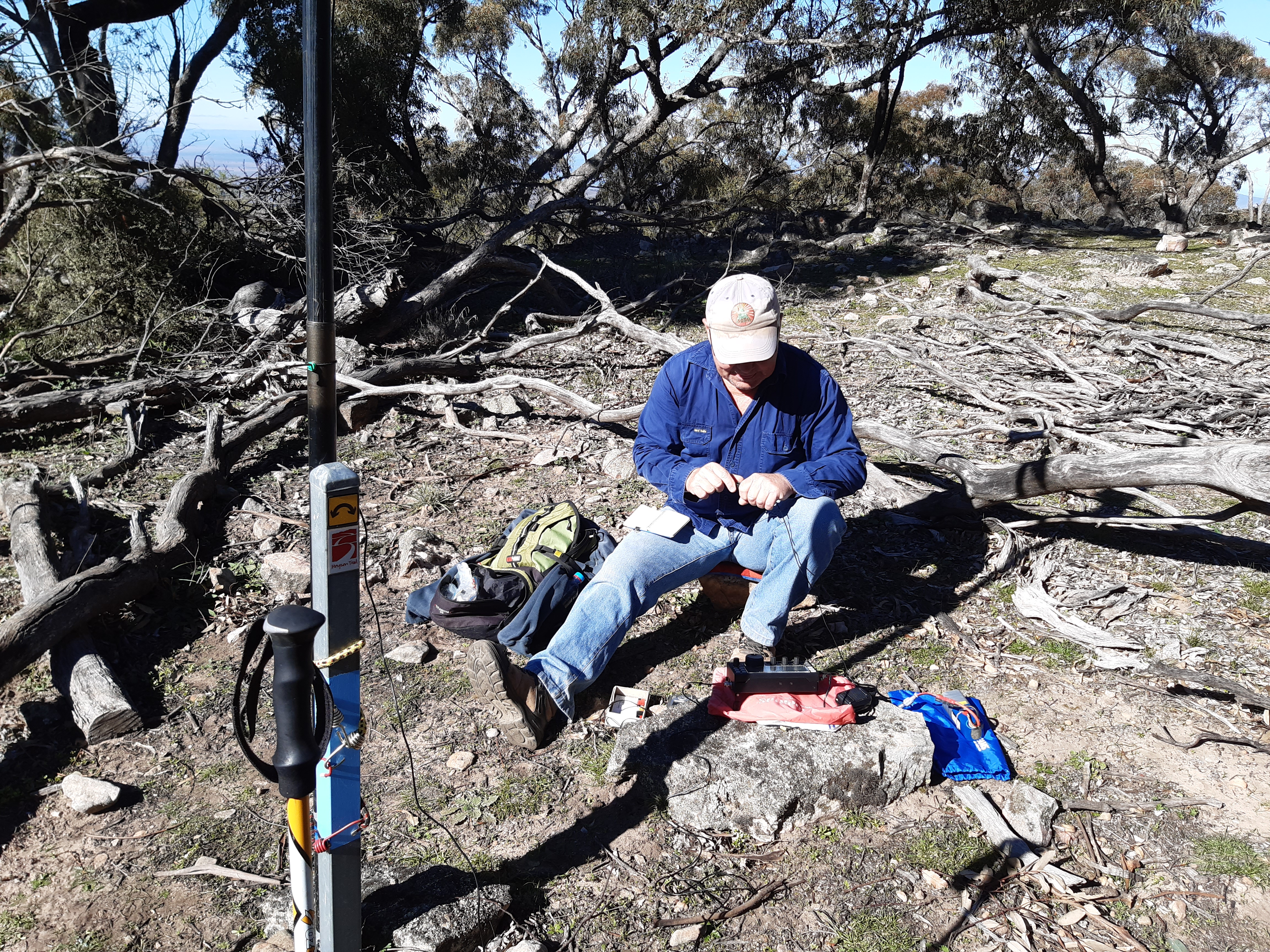

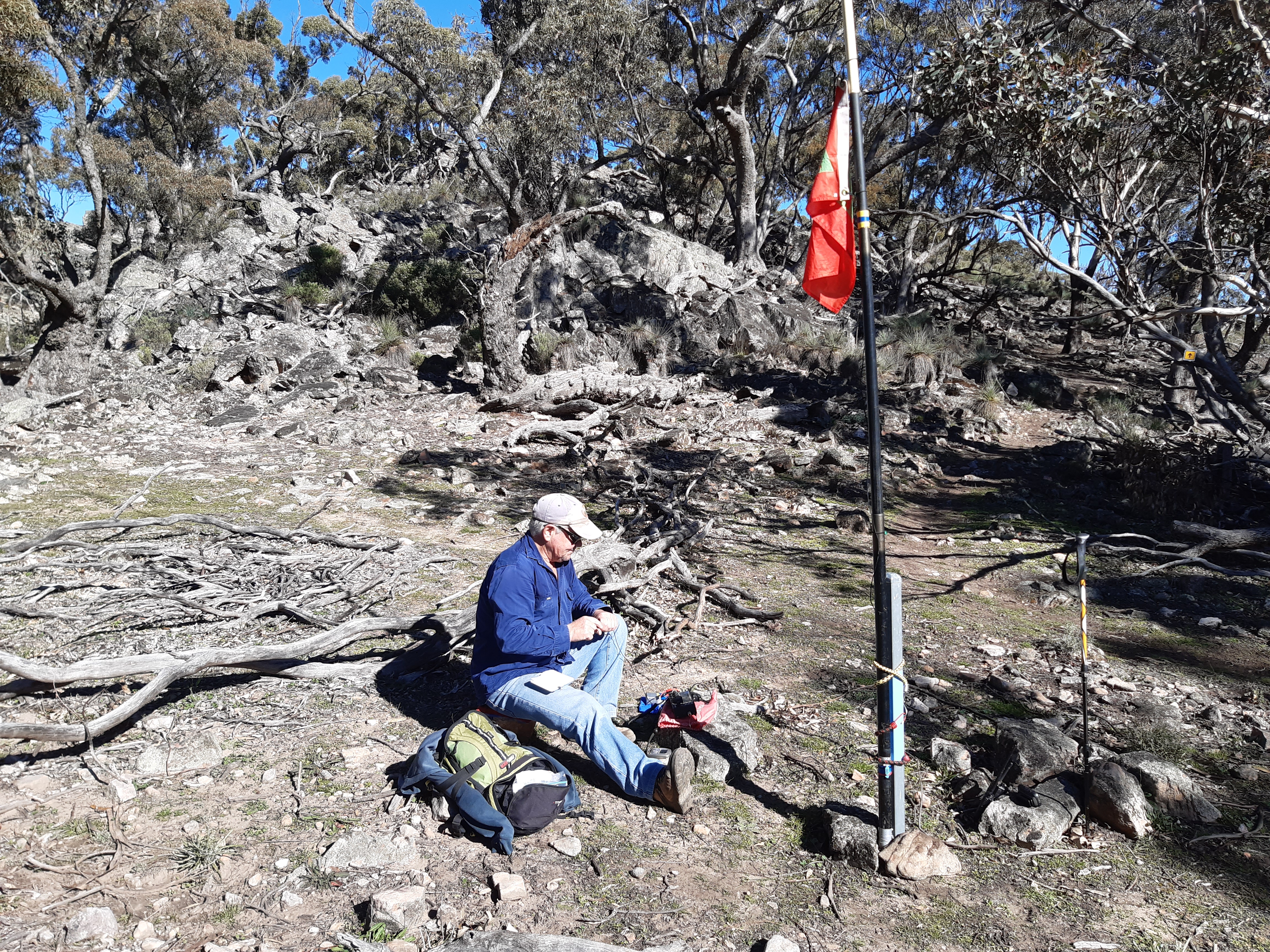

This trail post is ideal for setting up the link dipole and much easier here than on the pile of rocks above us. We both had a good number of locals on 80m then a small pile up on 40m cw of faithful chasers but no ZL this time. Walk time was 1hr 39 min for 6.3 km so a good pace and probably my least painful experience on this summit. Being mid SOTA season for me I guess we should be fitter than normal.

Thanks chasers on Mt Brown the 2 Ian’s ..

Mt Bryan VK5/SE-001

I headed out of Clare early in the morning in nice sunshine and very little wind which is the ideal weather to visit Mt Bryan, it can be really windy on that summit from past experiences. I take a few dirt roads over The Camels Hump range and exit near Mt Bryan Township to cut some kilometres off my trip.

On the road just near Hill Town the fog was starting to get thicker as I went and could only drive quite slowly all the way until Mt Bryan township.

Razor Back Hill on the southern side of the summit covered in fog and my view of Mt Bryan as I left the SOTA transporter.

Fog bank over Caroona Creek Mt Bryan East area.

Slowly gaining altitude as the fog lifts.

View out west to the Brown Hill wind farm and SOTA summit and my shirt drying in the breeze.

I saw another hiker on the way up he was just ahead of me but I had to wait until the top to talk to him I could not gain on him enough on the climb. He was interested in what I was doing and took a few photos of me on CW, which seems to amaze most non ham folks that see me operate cw.

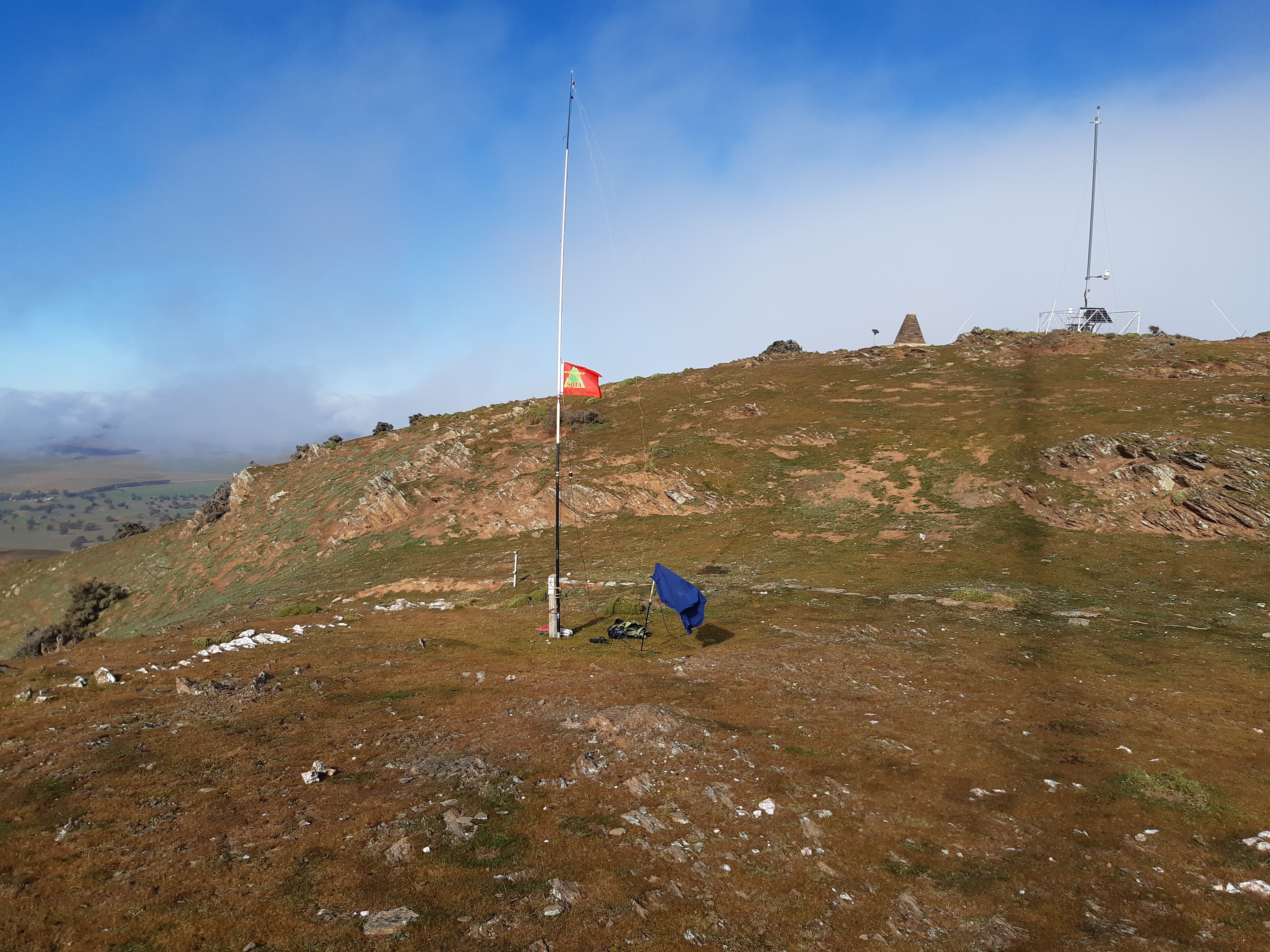

Had a nice group on 80m ssb first then 11 cw contacts on 40m with a pile up to work through to start off, always good to get them. No answer at all on 40m ssb, having plenty of time I spotted on 20m to find 2 ZL’s waiting for me and VK4DBJ on cw, a nice surprise and new contact for me.

Walk time up was 53 minutes walking, pretty slow going with some steep gain percentages but a good track as part of The Heysen Trail.

Thanks chasers on Mt Bryan VK5/SE-001

The Dutchmans Stern. VK5/NE-028

Leaving Clare at 6 am and minus 2c it was a frosty drive all the way until after sunrise north of Wilmington, I met Ian VK5IS in Laura again for another SOTA with the 2 Ian’s.

After a quick Coffee break and feed at The Dutchman’s Stern car park we hit the walking trail at 9 am allowing 2 hours to make the summit. Lots of female Kangaroos grazing on the side of the track with a small head sticking out of the pouch was a nice greeting to their world. The way to the summit is via the South Track which is about 6.2 km to the top, not as much gain in the ground to the top of this one as it is only around 200 metres of gain from the car park. We made our usual 4 km in the first hour then stopped for a drink and take off any warmer clothes etc.

Lower part of the track wanders around the sides of the gullies on a gradual climb for the first 5 km until we reach the spot to turn off the trail and head bush for the last 1.5 km of bush bash. The first time I visited here there were a lot of Goats and they made a track to follow but now it is all over grown again.

We are having a spell and checking the views out to the East,the Sheoaks seem to only grow after a certain height on the sides of the hills with lots of Spinifex, Yacka Bush and rocks as the under story.

Devils Peak, Richman Hill and Mount Brown  off to the south from here some other summits I visit in this area. It is also always good to see the other side of the range out to the West it means we are nearly there.

Summit in sight and after setting up, hard at work on 80m ssb working the local chasers. Ian and I had a turn at working the 80m ssb callers then Ian went on 40m ssb to get a couple more scores to qualify then I had a go on 40m cw. Made 4 more contacts on 40m cw to VK3PF VK2IO ZL2IFB and ZL1BYZ, but no answer to my cq on 20m cw. I have made a Flower Pot antenna out of coax for 2m and had it hanging in a bush, we made a test QSO to VK5WE and VK5GY several km south of where we were. I tested the path to VK5RLH repeater and got it back at half scale on my VX8 handheld, it was 173 km as a straight line on Google earth. Interesting thing was the straight line path was West of the Flinders in line almost with Highway 1 and Mambray Creek. That is probably why it was an unexpected good signal to me having none of the Flinders Ranges south of us in the way.

Back to the best cafe in the Flinders the Quondong Cafe for a quick Covid-19 coffee out side the shop then back to Laura to drop Ian off.

The walk was 12.6 km took 3 hrs 40 minutes on the move and we arrived back to the SOTA transporter a bit sore but I think feeling better than other times we have done this hike.

Thanks Ian for your company once again.

Thanks to the Chasers on Dutchmans Stern VK5/NE-028.

Thanks for reading My Blog.

Regards Ian vk5cz ..

Mount Remarkable VK5/NE-010 was my choice for summit number 300.

It’s a good hike of 6.2 km with about 580 metres of gain from the car park for a worthy hike and my personal achievement in the SOTA program.

Coffee break and feed and a quick sked on 3.680 with the locals before I leave the SOTA Transporter it was a nice cool morning probably 8c, My goal to make the top in 2 hrs.

The walking track has had a lot of clean out type work with fire rakes by the look getting rid of a lot of the loose rocks that normally kill your feet on this hike. I took my jumper off at Cathedral Rock noticing the valley below was fogged in but a really nice sunny day to look forward too on the mountain

Checking the E trex 30 I was on time walking the first 2 km in 28 minutes but that was about to change as the angles ramped up a bit more. Stopping at 4km was my next major pause at 1 hour to have a drink and snack I got some nice pictures near the plane crash site on the screed slopes.

Melrose and all the area around was still blanketed with fog, nice to see some green crops below for a change.

Screed slopes are always interesting and provide a good open view off the mountain, I made it here to this point in 1 hour.

Then more screed slopes with 1.5 km to go and now under pressure to make my Alert time.

The new monument at the top mentioning how Edward John Eyre named the Mountain Mount Remarkable as he had seen it from many places on his exploration trips around the State in 1840.

The Parks people have cleaned out the very large pile of rocks that was there before and made it a lot easier to set up my antenna.

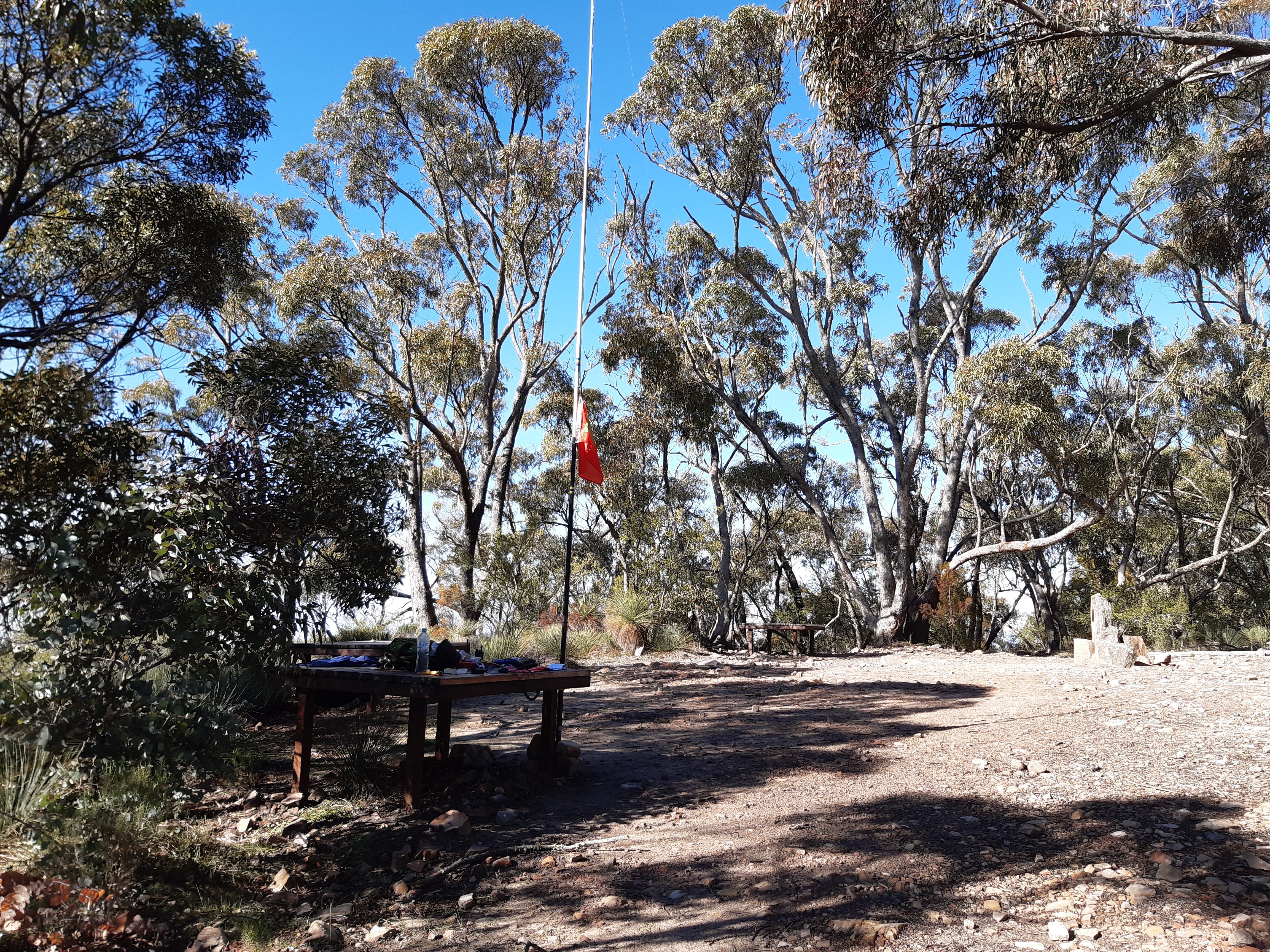

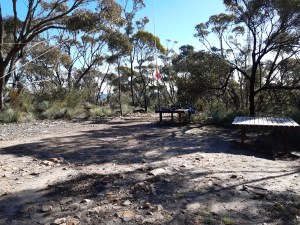

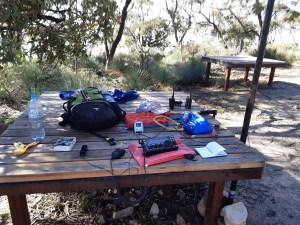

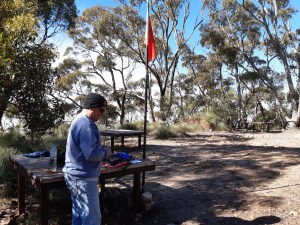

Shots of the larger area now set up with tables ideal for resting my Squid Pole on to put up the antenna.

Once I was set up and on air a group of about 30 school boys reached the summit on a school hike, in no time I had them all sitting on these benches giving them an impromptu lecture on Amateur Radio the original social media. Then had them all wondering what all the beep beep was about as I was working some chasers on CW, ideal I thought to my self show them what a dinosaur I am.

School Boys rounded up by their teachers who thanked me for the free lesson and an interesting diversion, off they went on the rest of their hike. Several other hikers came along also that day it’s probably the most people I have ever exposed to the hobby on any summit.

Well once I got set up and on air there was a steady flow of chasers on 80m ssb and cw then the same on 40m ssb and cw topping of with a few qso on 20m cw as well. VK1MCW,VK1DA and ZL1BYZ made the effort of working me from a summit, 3 S2S in the log, thanks to you folks for that. After a few double ups of contacts on other bands and modes my score was soon up to 30 qso so I decided to try to qualify the VKFF award as well. As the SOTAwatch3 site is linked to Parks and Peaks I set about gaining a score of 44 qso. It took a while to get the last 3 or 4 but they came through giving me 1 activation towards the Boomerang Award in VKFF.

Great day on the mountain and a good walk back to the car park, I got a couple photos now the fog had lifted. 300 summits is a mile stone for me its taken 7 years to get to this stage of my SOTA experience and I still want to go on and do a lot more summits in the future.

Thanks to all the chasers and summit to summit activators who gave me a contact on this day on Mount Remarkable.

Thanks for reading my Blog.

Regards

Ian vk5cz ..
